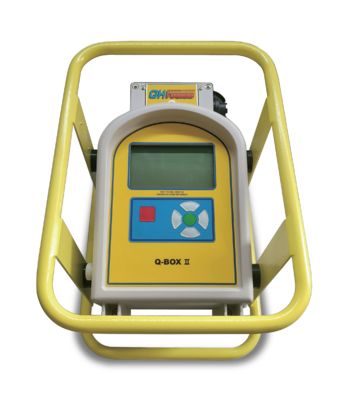

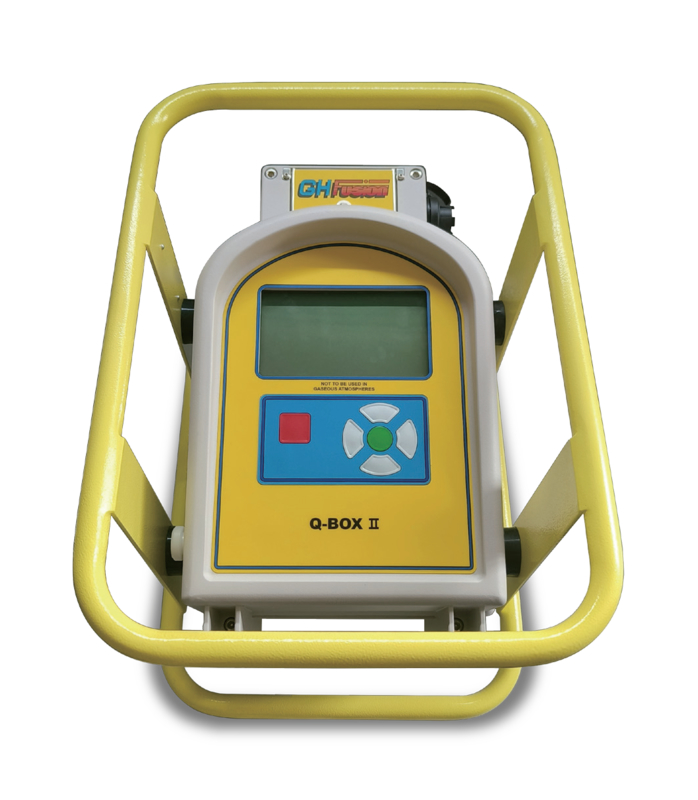

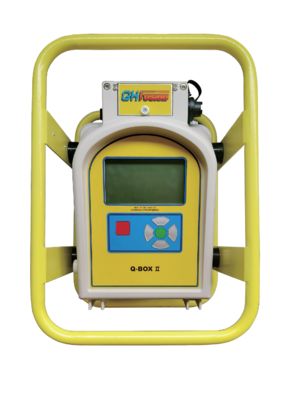

Automatic Electrofusion Welding Machines IP54 PE Pipe Electrofusion Control Unit Q-BOX Ⅱ

Large Image : Automatic Electrofusion Welding Machines IP54 PE Pipe Electrofusion Control Unit Q-BOX Ⅱ

Product Details:

Place of Origin:	Kunshan China
Brand Name:	Cyber Weld
Model Number:	Electrofusion Control Unit Q-BOX Ⅱ

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	contact us
Packaging Details:	carton
Payment Terms:	T/T,Western Union
Supply Ability:	100

Contact Now

Detailed Product Description

Name:	Electrofusion Control Unit Q-BOX Ⅱ	Model:	Q-BOX II
Max Output Current(A):	80	Maximum Output Power(KW):	3.2
Operating Temperature(°C）:	-10 To +50	Enviromental Protection(IP):	IP54
Input Cable Length(m):	3	Input Plug Rating(A):	16
Weight:	21.5 Kg	Frequency:	40-70 Hz
Highlight:	Automatic Electrofusion Welding Machines , Electrofusion Welding Machines IP54 , PE Pipe Electrofusion Control Box

FEI Electrofusion Control Unit Q-BOX Ⅱ

Automatic Electrofusion Welding Machines IP54 PE Pipe Electrofusion Control Unit Q-BOX Ⅱ 0

- Many control boxes feature an automatic recognition system that identifies the electrofusion fitting being used. This ensures the correct welding settings are applied automatically, minimizing errors and enhancing the safety and reliability of the connection.

Name	Electrofusion Control Unit Q-BOX Ⅱ
Operating Temperature (℃)	-10 to +50
Nominal Input Voltage	187-265V
Input Frequency	40-70Hz
Suggested Generator Power (kVA)	3.2

Given the closed design of the hydraulic station, we are equipped with an operating computer, a 16-bit true color touchscreen, and buttons for use. The system includes three languages: Chinese, English, and Japanese, which can help operators better understand the quick start guide. In addition to the above features:

. Possibility of manual programming.

. Fitting size range 20-160mm⌀.

. 3m output lead.

. Interchangeable welding adaptors 4mm, 4.7mm.

. Automatic welding time compensation.

. LCD display (2x16).

. Calibration reminder.

Automatic Electrofusion Welding Machines IP54 PE Pipe Electrofusion Control Unit Q-BOX Ⅱ 6

Automatic Electrofusion Welding Machines IP54 PE Pipe Electrofusion Control Unit Q-BOX Ⅱ 7

Automatic Electrofusion Welding Machines IP54 PE Pipe Electrofusion Control Unit Q-BOX Ⅱ 8

Automatic Electrofusion Welding Machines IP54 PE Pipe Electrofusion Control Unit Q-BOX Ⅱ 10

Packing: Up to exportation level plywood case for machines, standard carton for minor parts. Customized metal sheet box optional.

Shipping: Standard Ocean,land and air shipping available. Our professional can help you quickly decide delivery choice.

Automatic Electrofusion Welding Machines IP54 PE Pipe Electrofusion Control Unit Q-BOX Ⅱ 12

FEI is a leading innovator in the production of high-performance welding equipment,strategically headquartered near Shanghai, China. With proximity to major global shipping hubs, we ensure efficient logistics and seamless delivery to clients worldwide. As a technology-driven enterprise specializing in plastic pipeline welding solutions, the company integrates global advanced technologies to develop and manufacture a comprehensive range of equipment including Automatic Butt Fusion.
