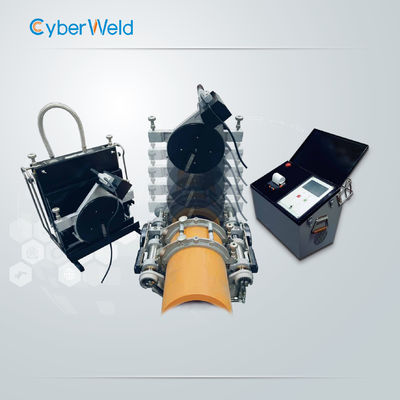

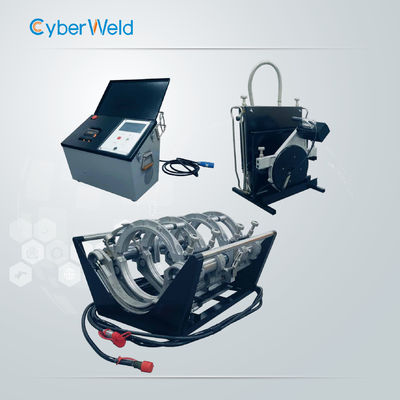

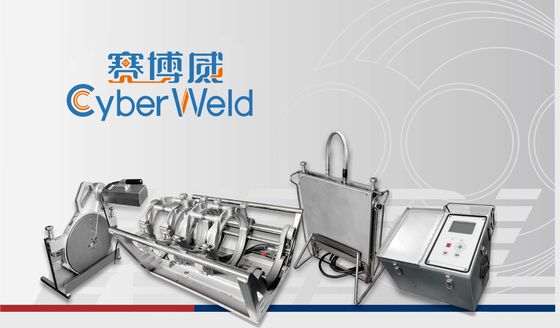

PP PE HDPE Pipe Butt Fusion Welding Machine 10.0 kVA Automatic Butt Fusion Machine

• Single-person machine setup

• Heater automatically ejects

• Automatic interlock ensures correct heater temperature

• Chassis can be split into two manageable modules

• Operable by a single person once in-situ

• Enhances productivity

• Faster joint cycle

• Upgrade available for existing CW 315 (refurbishment of heater and trimmer can be included in the upgrade)

• Approved by the National Grid

Model

CW 400

Pipe Size Range

90-400 Ø

Nominal Input Voltage

110V / 220V

Input Frequency

50-60Hz

Suggested Generator Power (kVA)

10.0

Given the closed design of the hydraulic station, we are equipped with an operating computer, a 16-bit true color touchscreen, and buttons for use. The system includes three languages: Chinese, English, and Japanese, which can help operators better understand the quick start guide.

Packing: Up to exportation level plywood case for machines, standard carton for minor parts.  Customized metal sheet box optional.

Shipping:  Standard Ocean,land and air shipping available. Our professional can help you quickly  decide delivery choice.

FEI is a leading innovator in the production of high-performance welding equipment,strategically headquartered near Shanghai, China. With proximity to major global shipping hubs, we ensure efficient logistics and seamless delivery to clients worldwide. As a technology-driven enterprise specializing in plastic pipeline welding solutions, the company integrates global advanced technologies to develop and manufacture a comprehensive range of equipment including Automatic Butt Fusion.
