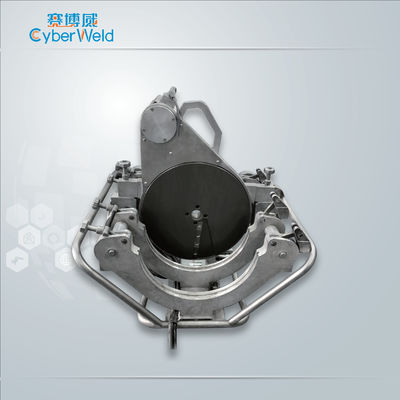

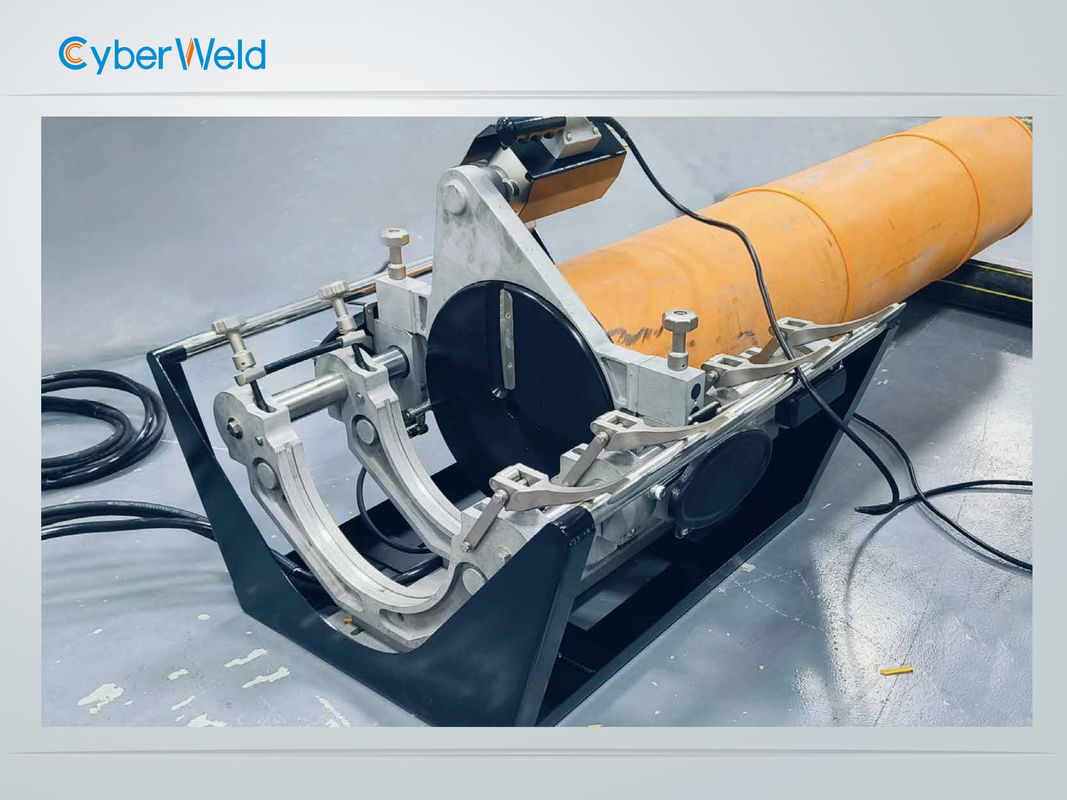

PP Automatic Butt Fusion Machine 7.5 kVA Auto Pipe Welding Machine

• Homework Sorting.

• Milling and Feathering Cycle.

• Peak and Dynamic Resistance Measurement.​​​

• Pipe Slippage Check.

• Heating Plate Temperature Control.

• Initial Hemming Distance Control.

• Heating Plate Ejection.

• Pressure Control for Hemming,Heat Absorption,Welding,and Cooling Time.

• Out-of-Specification Early Warning.

ltem

Gator 315 Pipeliner

Gator 400 Pipeliner

Product Code

G315110NLE

G400110NLE

G315220NLE

G400220NLE

Input Supply

110V Units

97-135Vac

97-135Vac

220V Units

195-260Vac

195-260Vac

Diameter Range

90-315mm

160-400mm

Gross Weight

175.5kg

292kg

SDR Range(Typical)

7.25,7.4,9,11,13,17,17.6,26,32
plus capability for special SDR

7.25,7.4,9,11,13,17,17.6,26,32
plus capability for special SDR

Operating Temperature(Range)

-10 to+40℃

-10 to+40℃

Storage Temperature(Range)

-15 to+45℃

-15 to+45℃

Data Retrieval

YES

YES

Environmental Protection

IP54

IP54

Unit Weights

Insert Module

69kg

250kg

Chassis

64.5kg

Controller

42kg

42kg

Dimensions(mm)
(LxWxH)

Overall Machine(Parked)

1160×820×660mm

including
protective
carriage

1250×880×780mm

Overall Machine(Unparked)

1160×820×1170mm

1530×880×1450mm

Chassis Only

760×820×470mm

N/A

Insert Module Only(Parked)

1100×820×580mm

N/A

Controller

470×515×500mm

470x515×500mm

Input Cable(Length)

5m

5m

Hydraulic Hoses (Length)

5m

5m

Model

ABF315

Pipe Size Range

90-315 Ф

Nominal Input Voltage

110V / 220V

Input Frequency

50-60Hz

Suggested Generator Power (kVA)

7.5

Given the closed design of the hydraulic station, we are equipped with an operating computer, a 16-bit true color touchscreen, and buttons for use. The system includes three languages: Chinese, English, and Japanese, which can help operators better understand the quick start guide. In addition to the above features:. A powerful pump motor aids in maintaining power unit cooling under heavy loads.. High-quality hydraulic pumps and solenoid valves.. Automatic oil level check.. Anti-drip hydraulic hose coonections.. Computer protection cover.. Neatly arranged cables.. Rugged stainless steel and ABS protective housing,featuring an ergonomic handle design.. Input power monitor.
