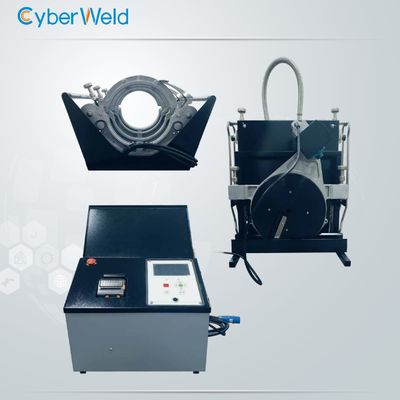

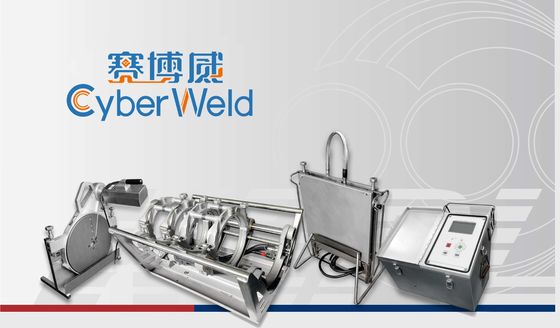

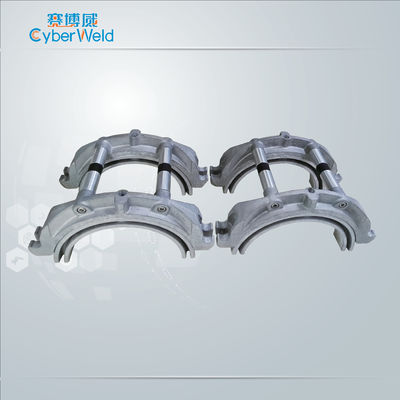

10.0 kVA PP Pipe Butt Welding Machine 110 - 220V Automatic Pipe Welding Equipment

SPECIAL FEATURES

• Single-person machine setup

• Automatic heater ejection

• Automatic interlock ensures correct heater temperature

• Chassis can be split into two manageable modules

• Operable by a single person once in situ

• Enhances productivity

• Faster joint cycle

• Upgrade available for existing CW315 (refurbishment of heater and trimmer can be included in the upgrade)

• Nationally Grid approved

ltem

Gator 315 Pipeliner

Gator 400 Pipeliner

Product Code

G315110NLE

G400110NLE

G315220NLE

G400220NLE

Input Supply

110V Units

97-135Vac

97-135Vac

220V Units

195-260Vac

195-260Vac

Diameter Range

90-315mm

160-400mm

Gross Weight

175.5kg

292kg

SDR Range(Typical)

7.25,7.4,9,11,13,17,17.6,26,32
plus capability for special SDR

7.25,7.4,9,11,13,17,17.6,26,32
plus capability for special SDR

Operating Temperature(Range)

-10 to+40℃

-10 to+40℃

Storage Temperature(Range)

-15 to+45℃

-15 to+45℃

Data Retrieval

YES

YES

Environmental Protection

IP54

IP54

Unit Weights

Insert Module

69kg

250kg

Chassis

64.5kg

Controller

42kg

42kg

Dimensions(mm)
(LxWxH)

Overall Machine(Parked)

1160×820×660mm

including
protective
carriage

1250×880×780mm

Overall Machine(Unparked)

1160×820×1170mm

1530×880×1450mm

Chassis Only

760×820×470mm

N/A

Insert Module Only(Parked)

1100×820×580mm

N/A

Controller

470×515×500mm

470x515×500mm

Input Cable(Length)

5m

5m

Hydraulic Hoses (Length)

5m

5m

Model

ABF400

Pipe Size Range

90-400 Ф

Nominal Input Voltage

110V / 220V

Input Frequency

50-60Hz

Suggested Generator Power (kVA)

10.0

Given the closed design of the hydraulic station, we are equipped with an operating computer, a 16-bit true color touchscreen, and buttons for use. The system includes three languages: Chinese, English, and Japanese, which can help operators better understand the quick start guide. In addition to the above features:

• A powerful pump motor aids in maintaining power unit cooling under heavy loads.

• High-quality hydraulic pumps and solenoid valves.

• Automatic oil level check.

• Anti-drip hydraulic hose coonections.

• Computer protection cover.

• Neatly arranged cables.

• Rugged stainless steel and ABS protective housing,featuring an ergonomic handle design.

• Input power monitor.
