10.0KVA Automatic Butt Welding Machine PP / HDPE Pipe Butt Fusion Welder

Automatic Butt Fusion Machine CW 400 for High-Performance HDPE/PP Pipe Welding Solution for Global Infrastructure Projects

Automatic Butt Fusion Machine CW 400

High-Performance HDPE/PP Pipe Welding Solution for Global Infrastructure Projects

*Why Choose Our Automatic Butt Fusion Machine?*

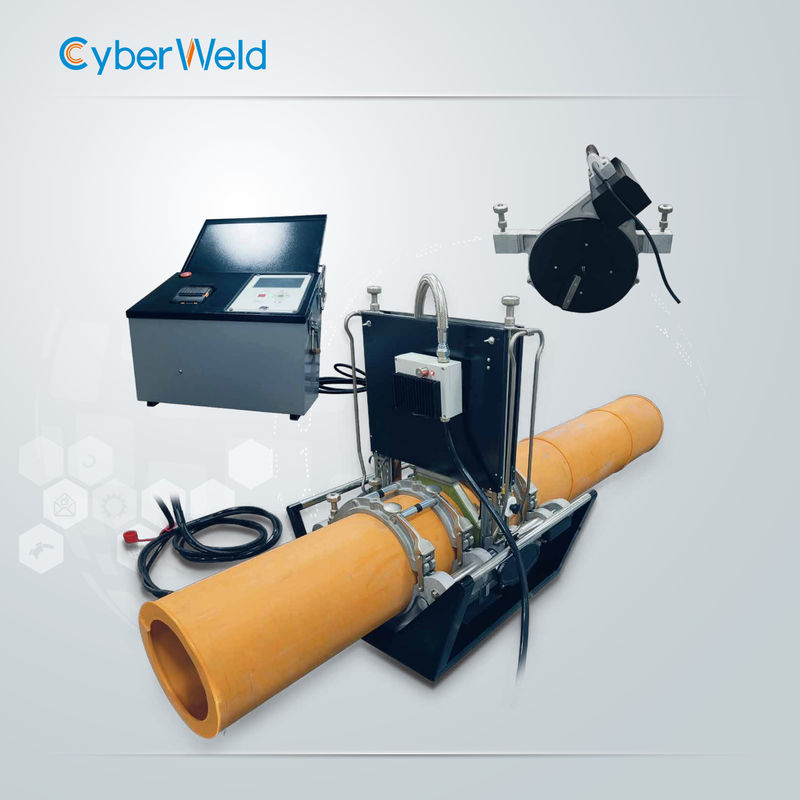

Introducing the new CW “Pipeliner” fully automatic butt fusion machine. Based on the CW 315, the Pipeliner features a gas-sprung pivoting heater and trimmer, eliminating all lifting from the jointing process.

SPECIAL FEATURES

• One-person machine setup

• Heater ejects automatically

• Automatic interlock ensures correct heater temperature

• Chassis can be split into two manageable modules

• Operable by one person once in-situ

• Increases productivity

• Faster joint cycle

• Upgrade available for existing CW 315 (refurbishment of heater and trimmer can be included in the upgrade)

• National Grid approved

OPTIONAL EXTRAS

• Liners

• Printer

• Barcode scanner

• Stub flange adaptor

• Knife-edge clamp

This series of machines has been designed and developed for polyethylene gas and water supply pipeline networks.
Optimal control of the welding process is achieved through an integrated computer, which monitors and regulates all connection parameters: time, temperature, pressure, movement, and sequence. If any of these parameters fall outside the requirements specified by the selected welding standard, the welding process will not proceed.
The design and manufacturing comply with or exceed the natural gas industry standard (GIS/PL-3) and ISO 12176-1.
The modular components feature a minimal/narrow footprint, making them ideal for in-ditch welding. The integration of the heating plate and cutter holder saves both space and weight.

✅**Continuous Monitoring:**

Packing: Up to exportation level plywood case for machines, standard carton for minorparts. Customized metal sheet box optional.

Shipping: Standard Ocean,land and air shipping available. Our professional can help youquickly decide delivery choice.

FEI is a leading innovator in the production of high-performance welding equipment, strategically headquartered near Shanghai, China. With proximity to major global shipping hubs, we ensure efficient logistics and seamless delivery to clients worldwide. As a technology-driven enterprise specializing in plastic pipeline welding solutions, the company integrates global advanced technologies to develop and manufacture a comprehensive range of equipment including Automatic Butt Fusion.
