Toggle-Clamp Electrofusion Tapping Tee for PE100 Mains | 40-63mm Outlet | 4mm Auto Pin | Water PN16 / Gas 10 Bar | Snap-On Tool-Free Branch Connections for Live Gas & Water Networks

Toggle-Clamp Tapping Tee — Tool-Free Branch Connections

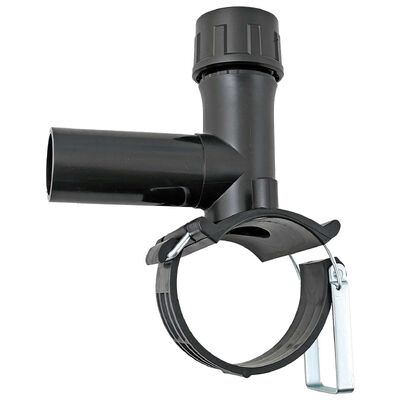

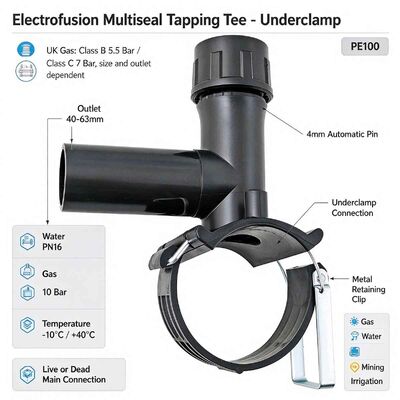

A toggle-clamp electrofusion tapping tee provides a direct service connection from a live or dead PE main. The spring-loaded clamp snaps quickly into place around the pipe — saving time and avoiding the need for specialist tooling — then the fusion mat is welded to the pipe wall and the outlet creates a branch for service lines with 40-63mm outlets on mains from 63mm to 225mm.

It delivers security, safety, simplicity and speed at the point of installation. The tamper-proof LockCap guarantees correct installation — it cannot be over-tightened and won't vibrate loose — while two O-ring seals protect against leakage. An optional cutter tube locks into the integral cutter for a leak-free cut-through of the main pipe.

Manufactured from virgin PE100 black polyethylene, rated PN16 for water and 10 bar for gas. For UK gas applications: 5.5 bar Class B / 7 bar Class C (size and outlet dependent). Operating temperature range: -10°C to +40°C.

Typical Applications

• Live-main service connections without interrupting flow
• Gas network branch connections to district networks
• Water utility service tappings from distribution mains
• Irrigation lateral connections from trunk lines
• Mining process water service branches
• Rapid repair and retrofit of existing PE networks

Key Features & Benefits

• Toggle-clamp design snaps quickly in place — saves time and avoids the need for specialist tooling
• Manufactured using virgin PE100 black polyethylene for long-term durability
• Water PN16 / Gas 10 Bar rating (dependent on PE pipe welded)
• Live or dead main connection — no need to shut down the pipeline
• Tamper-proof LockCap — cannot be over-tightened, won't vibrate loose
• Two O-ring seals protect against leakage at the clamp interface
• Optional cutter tube locks into the integral cutter for leak-free cut-through of the main pipe
• Double spigot outlet — sufficient spigot length to cut off the coupler and fuse a second fitting
• Optimised saddle and fusion mat minimize joint cycle times
• 4mm automatic pin — auto-detects welding parameters, prevents operator error
• SDR range 11–17.6, covering common PE pipe wall thicknesses
• Rising pin fusion indicators allow easy visual monitoring of the fusion process
• Welding parameters moulded directly into the fitting body
• Individually numbered for precise batch tracking and quality control
• Permanent batch number clearly marked for traceability
• Barcode and QR code enables full traceability back to raw materials
• Welding barcode compliant with ISO 13950; traceability barcode compliant with ISO 12176-4
• Fully welded joint — no gaskets, no flanges, no future maintenance

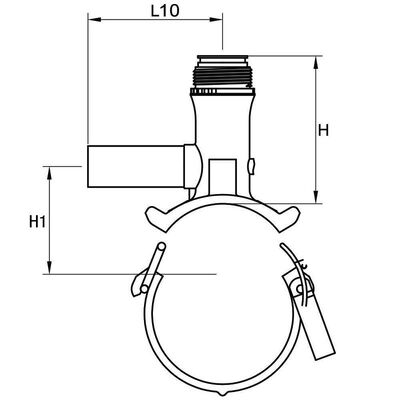

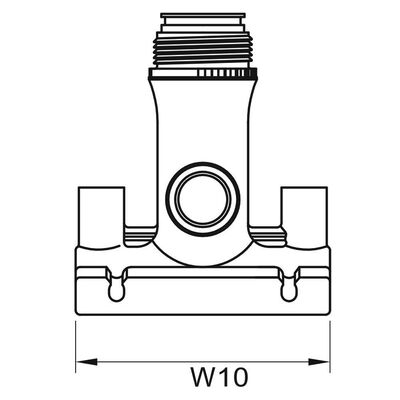

Reference Numbers & Dimensions

Note: All stated technical specifications depend on the PE pipe welded to and local pipeline pressure regulations. SDR range 11–17.6 applies across all sizes. Please contact us for detailed CAD drawings.

Product Standards & Certifications

Our electrofusion tapping tees are designed and manufactured to meet international product standards, backed by ISO 9001 and ISO 29001 quality management system certifications. The Fusamatic range is third-party certified against the standards below.

• EN ISO 15494 — Plastics piping systems — Polyethylene (PE) for industrial applications (3rd party approved)
• EN 12201-3 — Plastics piping systems for water supply — Polyethylene (PE) — Part 3: Fittings (3rd party approved)
• EN 1555-3 — Plastics piping systems for the supply of gaseous fuels — Polyethylene (PE) — Part 3: Fittings (3rd party approved)
• ISO 4437-3 — Plastics piping systems for the supply of gaseous fuels — Polyethylene (PE) — Part 3: Fittings (3rd party approved)
• ISO 4427-3 — Plastics piping systems for water supply — Polyethylene (PE) — Part 3: Fittings (3rd party approved)
• Welding barcode compliant with ISO 13950
• Traceability barcode compliant with ISO 12176-4

Note: Regional variations may apply. Other product certificates available upon request.

Shipping & Delivery Information

We export PE electrofusion tapping tees worldwide. Small sizes are packed in cartons on pallets; larger sizes are individually polybagged and crated for safe sea freight.

After-Sales Service & Warranty

We stand behind the quality of our electrofusion fittings. Our commitment doesn't end at delivery — we provide comprehensive technical support for your PE pipeline project.

Frequently Asked Questions

Common questions about our toggle-clamp tapping tee underclamp
