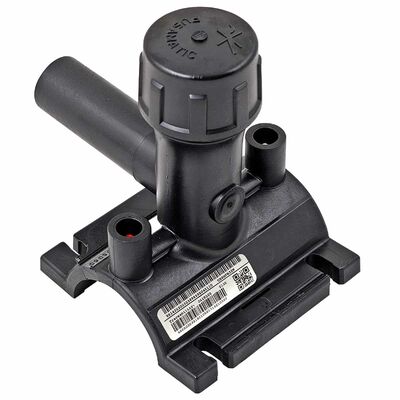

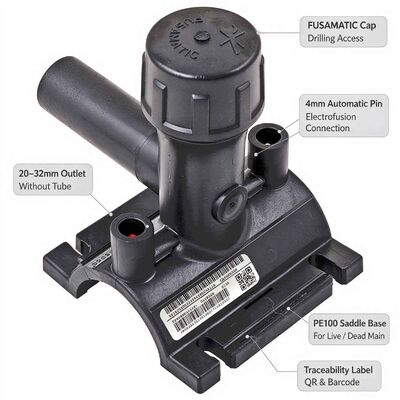

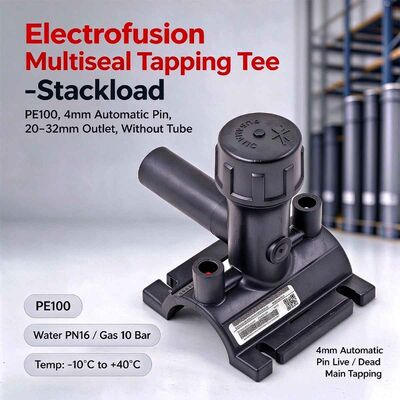

Key Features & Benefits
- Stackload stackable design — fittings nest safely together, cutting warehouse storage space and transport costs
- Covers the widest main range: DN63 to DN355mm with 20-32mm service outlets (39 combinations)
- Manufactured using virgin PE100 black polyethylene for long-term durability
- Water PN16 / Gas 10 Bar rating (dependent on PE pipe welded)
- Live or dead main connection — no need to shut down the pipeline
- Tamper-proof LockCap — cannot be over-tightened, won't vibrate loose
- Two O-ring seals protect against leakage at the clamp interface
- Optional cutter tube locks into the integral cutter for leak-free cut-through of the main pipe
- Double spigot outlet — sufficient spigot length to cut off the coupler and fuse a second fitting
- Optimised saddle and fusion mat minimize joint cycle times
- 4mm automatic pin — auto-detects welding parameters, prevents operator error
- SDR range 11–17.6 (11–21 for DN250-355), covering common PE pipe wall thicknesses
- Rising pin fusion indicators allow easy visual monitoring of the fusion process
- Welding parameters moulded directly into the fitting body
- Individually numbered for precise batch tracking and quality control
- Permanent batch number clearly marked for traceability
- Barcode and QR code enables full traceability back to raw materials
- Welding barcode compliant with ISO 13950; traceability barcode compliant with ISO 12176-4
- Fully welded joint — no gaskets, no flanges, no future maintenance

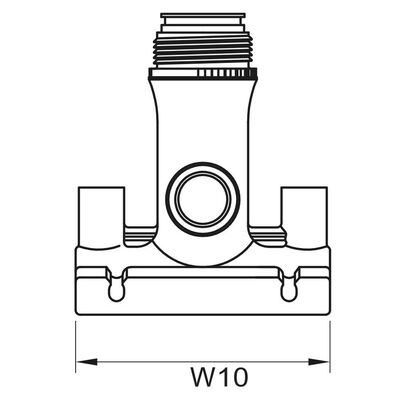

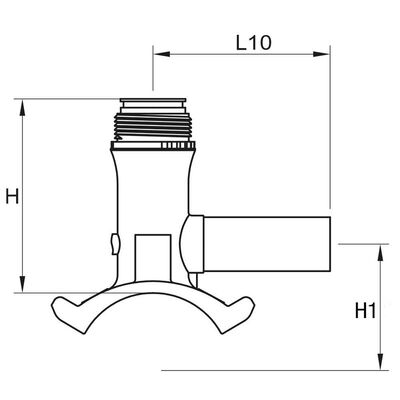

Reference Numbers & Dimensions
| Ref. No. |
Fitting Size (mm) |
L10 (mm) |
H (mm) |
H1 (mm) |
W10 (mm) |
SDR Range |
Fusion Time (s) |
Cooling Time (min) |
Weight (kg) |
| MTBKHFA63X20 |
63×20 |
105 |
119 |
62 |
120 |
11–17.6 |
80 |
10 |
0.380 |
| MTBKHFA63X25 |
63×25 |
105 |
119 |
62 |
120 |
11–17.6 |
80 |
10 |
0.378 |
| MTBKHFA63X32 |
63×32 |
105 |
119 |
62 |
120 |
11–17.6 |
80 |
10 |
0.365 |
| MTBKHFA75X20 |
75×20 |
105 |
110 |
77 |
120 |
11–17.6 |
90 |
10 |
0.460 |
| MTBKHFA75X25 |
75×25 |
105 |
110 |
77 |
120 |
11–17.6 |
90 |
10 |
0.460 |
| MTBKHFA75X32 |
75×32 |
105 |
110 |
77 |
120 |
11–17.6 |
90 |
10 |
0.480 |
| MTBKHFA90X20 |
90×20 |
105 |
110 |
77 |
120 |
11–17.6 |
90 |
10 |
0.380 |
| MTBKHFA90X25 |
90×25 |
105 |
110 |
77 |
120 |
11–17.6 |
90 |
10 |
0.398 |
| MTBKHFA90X32 |
90×32 |
105 |
110 |
77 |
120 |
11–17.6 |
90 |
10 |
0.402 |
| MTBKHFA110X20 |
110×20 |
105 |
117 |
87 |
120 |
11–17.6 |
80 |
10 |
0.390 |
| MTBKHFA110X25 |
110×25 |
105 |
117 |
87 |
120 |
11–17.6 |
80 |
10 |
0.386 |
| MTBKHFA110X32 |
110×32 |
105 |
117 |
87 |
120 |
11–17.6 |
80 |
10 |
0.386 |
| MTBKHFA125X20 |
125×20 |
105 |
117 |
95 |
120 |
11–17.6 |
80 |
10 |
0.310 |
| MTBKHFA125X25 |
125×25 |
105 |
117 |
95 |
120 |
11–17.6 |
80 |
10 |
0.390 |
| MTBKHFA125X32 |
125×32 |
105 |
117 |
95 |
120 |
11–17.6 |
80 |
10 |
0.388 |
| MTBKHFA160X20 |
160×20 |
105 |
122 |
112 |
120 |
11–17.6 |
100 |
10 |
0.320 |
| MTBKHFA160X25 |
160×25 |
105 |
122 |
112 |
120 |
11–17.6 |
100 |
10 |
0.410 |
| MTBKHFA160X32 |
160×32 |
105 |
122 |
112 |
120 |
11–17.6 |
100 |
10 |
0.409 |
| MTBKHFA180X20 |
180×20 |
105 |
122 |
122 |
120 |
11–17.6 |
100 |
10 |
0.350 |
| MTBKHFA180X25 |
180×25 |
105 |
122 |
122 |
120 |
11–17.6 |
100 |
10 |
0.410 |
| MTBKHFA180X32 |
180×32 |
105 |
122 |
122 |
120 |
11–17.6 |
100 |
10 |
0.410 |
| MTBKHFA200X20 |
200×20 |
105 |
122 |
132 |
120 |
11–17.6 |
100 |
10 |
0.300 |
| MTBKHFA200X25 |
200×25 |
105 |
122 |
132 |
120 |
11–17.6 |
100 |
10 |
0.320 |
| MTBKHFA200X32 |
200×32 |
105 |
122 |
132 |
120 |
11–17.6 |
100 |
10 |
0.376 |
| MTBKHFA225X20 |
225×20 |
105 |
122 |
145 |
120 |
11–17.6 |
100 |
10 |
0.320 |
| MTBKHFA225X25 |
225×25 |
105 |
122 |
145 |
120 |
11–17.6 |
100 |
10 |
0.408 |
| MTBKHFA225X32 |
225×32 |
105 |
122 |
145 |
120 |
11–17.6 |
100 |
10 |
0.403 |
| MTBKHFA250X20 |
250×20 |
105 |
122 |
158 |
120 |
11–21 |
100 |
10 |
0.392 |
| MTBKHFA250X25 |
250×25 |
105 |
122 |
158 |
120 |
11–21 |
100 |
10 |
0.390 |
| MTBKHFA250X32 |
250×32 |
105 |
122 |
158 |
120 |
11–21 |
100 |
10 |
0.390 |
| MTBKHFA280X20 |
280×20 |
105 |
122 |
176 |
120 |
11–21 |
100 |
10 |
0.426 |
| MTBKHFA280X25 |
280×25 |
105 |
122 |
176 |
120 |
11–21 |
100 |
10 |
0.426 |
| MTBKHFA280X32 |
280×32 |
105 |
122 |
176 |
120 |
11–21 |
100 |
10 |
0.426 |
| MTBKHFA315X20 |
315×20 |
105 |
122 |
194 |
120 |
11–21 |
100 |
10 |
0.400 |
| MTBKHFA315X25 |
315×25 |
105 |
122 |
194 |
120 |
11–21 |
100 |
10 |
0.410 |
| MTBKHFA315X32 |
315×32 |
105 |
122 |
194 |
120 |
11–21 |
100 |
10 |
0.410 |
| MTBKHFA355X20 |
355×20 |
105 |
122 |
214 |
120 |
11–21 |
100 |
10 |
0.400 |
| MTBKHFA355X25 |
355×25 |
105 |
122 |
214 |
120 |
11–21 |
100 |
10 |
0.410 |
| MTBKHFA355X32 |
355×32 |
105 |
122 |
214 |
120 |
11–21 |
100 |
10 |
0.400 |
Note: All stated technical specifications depend on the PE pipe welded to and local pipeline pressure regulations. SDR range 11–17.6 applies to DN63-225; SDR 11–21 applies to DN250-355. Please contact us for detailed CAD drawings.
