Electrofusion Branch Saddle for PE100 Mains | 63mm Outlet | 4mm Auto Pin | Water PN16 / Gas 10 Bar | Bypass, Purging & Off-Take Connections on DN250-450 Gas, Water & Mining Pipelines

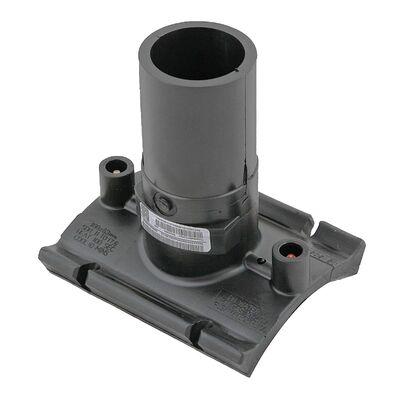

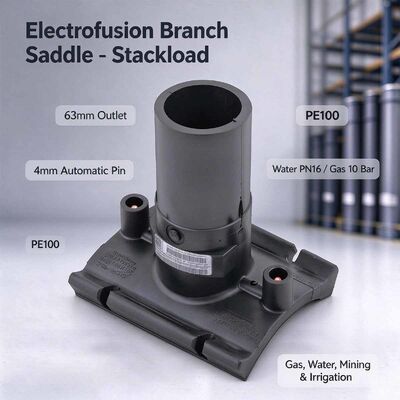

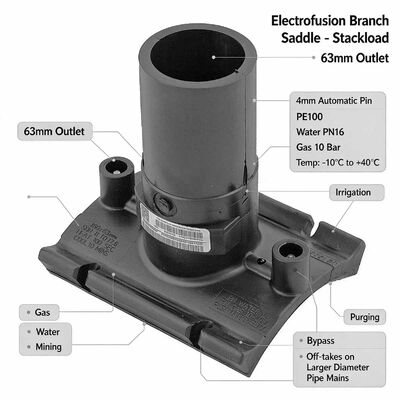

The Fusamatic branch saddle (Stackload) offers a complete solution for bypass, purging and off-take connections on larger diameter pipe mains, where a welded branch is required without cutting into the main pipe. The saddle welds directly onto the outside of the pipe wall, creating a fully welded, maintenance-free branch.

It covers the largest mains in the range: DN250 to DN450mm (including a combined 400–450mm size) with a 63mm outlet, spanning SDR 11–21. The stackable body nests safely for storage, reducing storage space and freight volume.

Manufactured from virgin PE100 black polyethylene with a 4mm automatic pin, rated PN16 for water and 10 bar for gas. Suitable for gas, water, mining and irrigation applications. Operating temperature range: −10°C to +40°C.

• Bypass connections on large distribution mains
• Pipeline purging and flushing access points
• Off-take / take-off branches from DN250–450 mains
• Gas network purge and service connections
• Water network flushing and sampling points
• Mining slurry line purge and service connections

• Purpose-built for bypass, purging and off-take connections on larger diameter pipe mains
• Fully welded branch — no gaskets, no flanges, no future maintenance
• Covers the biggest mains: DN250 to DN450mm, including the combined 400–450 size
• 63mm outlet for high-flow branch connections
• Stackable body design — fittings nest safely together, cutting storage space and freight volume
• Manufactured using virgin PE100 black polyethylene for long-term durability
• Water PN16 / Gas 10 Bar rating (dependent on the PE pipe welded)
• 4mm automatic pin — auto-detects welding parameters and prevents operator error
• Manual welding parameters moulded directly into the fitting body
• Permanently marked batch number and rising pin fusion indicators
• Individually numbered for precise batch tracking and quality control
• Barcode and QR code enable full traceability back to raw materials
• Welding barcode compliant with ISO 13950; traceability barcode compliant with ISO 12176-4
• SDR range 11–21 across the full size range

Our electrofusion branch saddles are designed and manufactured to meet international product standards, backed by ISO 9001 and ISO 29001 quality management system certifications. The Fusamatic range is third-party certified against the standards below.

• EN ISO 15494 — Plastics piping systems — Polyethylene (PE) for industrial applications (3rd party approved)
• EN 12201-3 — Plastics piping systems for water supply — Polyethylene (PE) — Part 3: Fittings (3rd party approved)
• EN 1555-3 — Plastics piping systems for the supply of gaseous fuels — Polyethylene (PE) — Part 3: Fittings (3rd party approved)
• ISO 4437-3 — Plastics piping systems for the supply of gaseous fuels — Polyethylene (PE) — Part 3: Fittings (3rd party approved)
• ISO 4427-3 — Plastics piping systems for water supply — Polyethylene (PE) — Part 3: Fittings (3rd party approved)
• Welding barcode compliant with ISO 13950
• Traceability barcode compliant with ISO 12176-4

We export PE electrofusion branch saddles worldwide. Small sizes are packed in cartons on pallets; larger sizes are individually polybagged and crated for safe sea freight. The stackable design also reduces freight volume for bulk orders.

We stand behind the quality of our electrofusion fittings. Our commitment doesn't end at delivery — we provide comprehensive technical support for your PE pipeline project.

Common questions about our branch saddle with 63mm outlet.
