PE100 Electrofusion Transition Saddle | 1.25-2" Female BSP Threads | 4mm Auto Pin | Water PN16 / Gas 10 Bar | Pressure Taps, Imperial Conversion, Sensing & Air-Release Tie-Ins for DN63-250 Mains

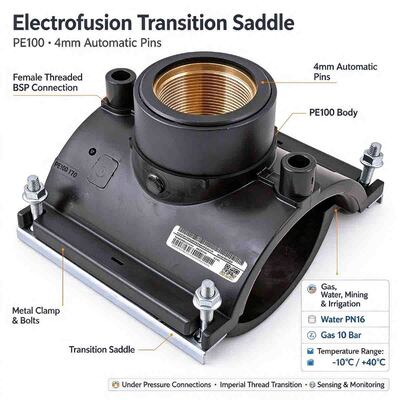

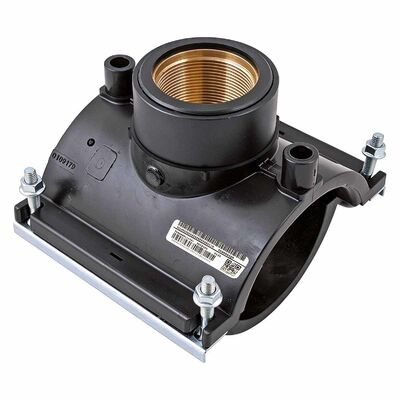

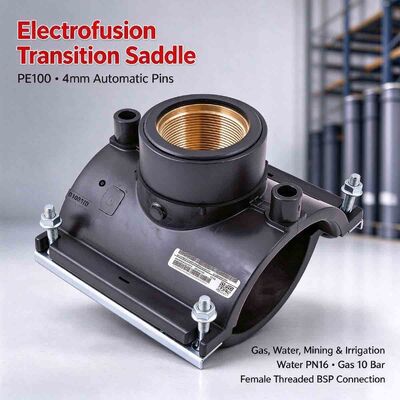

The electrofusion transition saddle is available with a variety of female threaded BSP connections which permit a wide range of solutions: under-pressure connections, transition to imperial threaded systems, or connection to sensing, monitoring or air release systems. The saddle welds directly onto the pipe wall, creating a fully welded, maintenance-free access point.

Threaded inserts are manufactured from brass CW614N for a robust, corrosion-resistant connection point, available in 1¼", 1½" and 2" female BSP. Covers mains from DN63 to DN250mm across SDR 11–17.6.

Manufactured from virgin PE100 black polyethylene with a 4mm automatic pin, rated PN16 for water and 10 bar for gas. Suitable for gas, water, mining and irrigation applications. Operating temperature range: −10°C to +40°C.

• Under-pressure connections on live water and gas mains
• Transition from metric PE pipe to imperial threaded systems
• Pressure sensing and monitoring device tie-ins
• Air release valve and vent connections
• Flow-meter and instrumentation mounting points
• Mining and irrigation network instrumentation

• Female BSP threaded connections (1¼", 1½", 2") for versatile tie-in solutions
• Supports under-pressure connections on live mains
• Enables transition to imperial threaded systems
• Ideal for sensing, monitoring or air release systems
• Brass CW614N threaded insert — robust and corrosion-resistant
• Fully welded access — no gaskets, no flanges, no future maintenance
• Manufactured using virgin PE100 black polyethylene for long-term durability
• Water PN16 / Gas 10 Bar rating (dependent on PE pipe welded)
• 4mm automatic pin — auto-detects welding parameters, prevents operator error
• Manual welding parameters moulded directly into the fitting body
• Permanently marked batch number and rising pin fusion indicators
• Individually numbered for precise batch tracking and quality control
• Barcode and QR code enables full traceability back to raw materials
• Welding barcode compliant with ISO 13950; traceability barcode compliant with ISO 12176-4
• SDR range 11–17.6 across the full size range

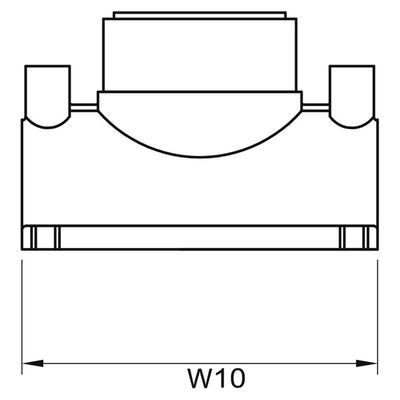

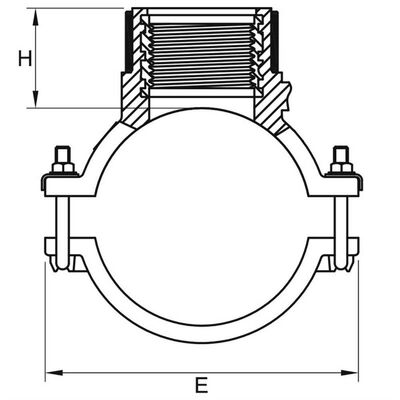

Note: Thread sizes are female BSP in inches (1¼", 1½", 2"). All stated technical specifications depend on the PE pipe welded to and local pipeline pressure regulations. Please contact us for detailed CAD drawings.

Our electrofusion transition saddles are designed and manufactured to meet international product standards, backed by ISO 9001 and ISO 29001 quality management system certifications. The Fusamatic range is third-party certified against the standards below.

• EN ISO 15494 — Plastics piping systems — Polyethylene (PE) for industrial applications (3rd party approved)
• EN 12201-3 — Plastics piping systems for water supply — Polyethylene (PE) — Part 3: Fittings (3rd party approved)
• EN 1555-3 — Plastics piping systems for the supply of gaseous fuels — Polyethylene (PE) — Part 3: Fittings (3rd party approved)
• ISO 4437-3 — Plastics piping systems for the supply of gaseous fuels — Polyethylene (PE) — Part 3: Fittings (3rd party approved)
• ISO 4427-3 — Plastics piping systems for water supply — Polyethylene (PE) — Part 3: Fittings (3rd party approved)
• Welding barcode compliant with ISO 13950
• Traceability barcode compliant with ISO 12176-4

Note: Regional variations may apply. Other product certificates available upon request.

We export PE electrofusion transition saddles worldwide. Small sizes are packed in cartons on pallets; larger sizes are individually polybagged and crated for safe sea freight.

We stand behind the quality of our electrofusion fittings. Our commitment doesn't end at delivery — we provide comprehensive technical support for your PE pipeline project.

Common questions about our transition saddle with brass BSP threads.
