PE100 90° Electrofusion Transition Elbow | Brass Female BSPP Thread | 4mm Auto Pin | Water PN16 / Gas 10 Bar | Hexagon Insert for Metallic Service-Line Tie-Ins, Imperial Adapters DN25-63

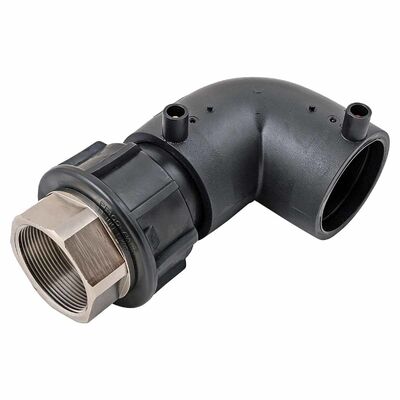

The 90° electrofusion transition elbow with female thread provides a quick and easy way to connect various types of metallic pipes to PE pipe systems. The PE spigot is electrofusion welded onto the pipe while the female BSPP thread accepts threaded metallic fittings — a simple but effective solution for house service connections.

The threaded insert is manufactured from brass CW617N/CW511L with a hexagon body for easy wrench tightening, available in ¾" to 2" female BSPP parallel threads. Covers PE spigot sizes from DN25 to DN63mm.

Manufactured from virgin PE100 black polyethylene with a 4mm Fusamatic automatic pin, rated PN16 for water and 10 bar for gas. Suitable for gas, water, wastewater, irrigation and mining applications. Operating temperature range: -10°C to +40°C.

• House service connections from PE mains to metallic service lines
• Threaded metallic fittings and imperial adapters on PE networks
• Domestic meter and valve installations
• Water, gas and wastewater service networks
• Irrigation and mining metallic-to-PE pipe transitions
• Repair and renewal of metallic service connections

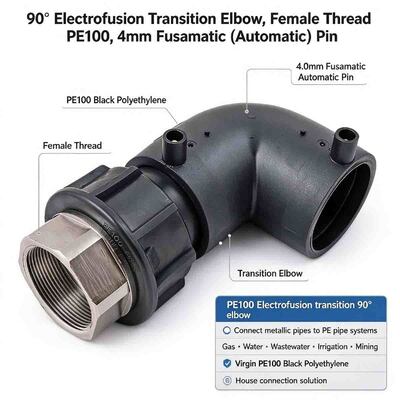

• 90° elbow geometry for compact metallic-to-PE service transitions
• Female BSPP thread (¾", 1", 1¼", 1½", 2") — accepts threaded metallic fittings directly
• Hexagon brass insert enables easy wrench tightening during installation
• Allows transition between metric PE and threaded imperial connections
• Brass CW617N/CW511L threaded insert — robust and corrosion-resistant
• Quick and easy house service connections without additional adaptor pieces
• Fully welded PE joint — no gaskets, no mechanical clamps, no future maintenance
• Manufactured using virgin PE100 black polyethylene for long-term durability
• Water PN16 / Gas 10 Bar rating (dependent on PE pipe welded)
• 4mm Fusamatic automatic pin — auto-detects welding parameters, prevents operator error
• Rising pin fusion indicators allow easy monitoring of the fusion process
• Manual welding parameters moulded into the fitting body
• Permanent batch number clearly marked for quality control
• Barcode and QR code enables full traceability back to raw materials
• Welding barcode compliant with ISO 13950; traceability barcode compliant with ISO 12176-4

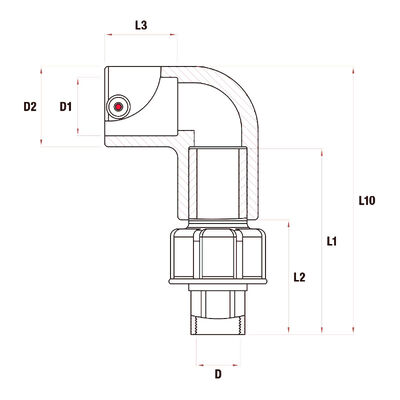

Note: Thread sizes are female BSPP (parallel) in inches. "F" denotes female thread. All stated technical specifications depend on the PE pipe welded to and local pipeline pressure regulations. Please contact us for detailed CAD drawings.

Our electrofusion transition elbows are designed and manufactured to meet international product standards, backed by ISO 9001 and ISO 29001 quality management system certifications. The Fusamatic range is designed and manufactured to the standards below.

• EN ISO 15494 — Plastics piping systems — Polyethylene (PE) for industrial applications
• EN 12201-3 — Plastics piping systems for water supply — Polyethylene (PE) — Part 3: Fittings
• EN 1555-3 — Plastics piping systems for the supply of gaseous fuels — Polyethylene (PE) — Part 3: Fittings
• ISO 4437-3 — Plastics piping systems for the supply of gaseous fuels — Polyethylene (PE) — Part 3: Fittings
• ISO 4427-3 — Plastics piping systems for water supply — Polyethylene (PE) — Part 3: Fittings

Note: Regional variations may apply. Other product certificates available upon request.

We export PE electrofusion transition elbows worldwide. Fittings are individually polybagged, cartoned and palletized for safe sea freight; threaded ends are protected against transit damage.

We stand behind the quality of our electrofusion fittings. Our commitment doesn't end at delivery — we provide comprehensive technical support for your PE pipeline project.

Common questions about our 90° transition elbow with female BSPP thread.
