PE100 Electrofusion End Cap | 4mm Automatic Pin | Water PN16 / Gas 10 Bar | Sealed Pipe-End Termination for Gas Distribution, Water Supply, Drainage & Mining Networks | DN20-250

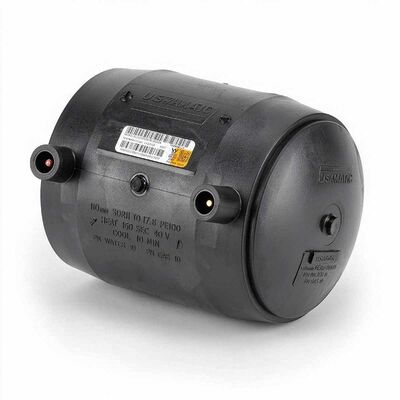

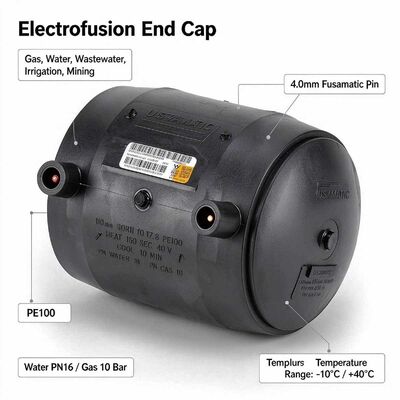

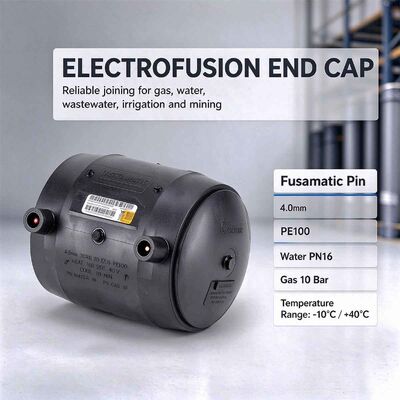

The PE100 electrofusion end cap is welded onto the end of a polyethylene pipe to create a permanent, leak-free line closure. It is the simplest and most reliable way to terminate PE pipe ends in gas distribution, water supply, drainage, irrigation and mining networks.

Manufactured from virgin PE100 black polyethylene with a 4mm Fusamatic automatic pin, the cap self-detects welding parameters for error-free fusion. Fusion and cooling times are moulded directly on the fitting body as manual backup.

Rated water PN16 and gas 10 bar (dependent on the PE pipe welded and local pressure regulations). Operating temperature range: -10°C to +40°C. Available from DN20 to DN250mm — 16 standard references.

• Ending PE mains and service lines in gas distribution networks
• Closing dead-end sections and future extension points in water mains
• Terminating drainage, irrigation and mining pipeline runs
• Sealing pipe ends during pressure testing and commissioning
• Permanent closure of decommissioned or abandoned pipe sections

• Permanent, fully welded leak-free line closure — no gaskets or mechanical joints
• Manufactured using virgin PE100 black polyethylene for long-term durability
• 4mm Fusamatic automatic pin — auto-reads welding parameters, prevents operator error
• Rising pin fusion indicators allow easy monitoring of the fusion process
• Manual welding parameters moulded into the fitting body
• Water PN16 / Gas 10 Bar rating (dependent on PE pipe welded)
• Full range from DN20 to DN250mm — 16 references for every pipe size
• All electrofusion fittings individually numbered for precise tracking
• Permanent batch number clearly marked for quality control
• Barcode and QR code enables full traceability back to raw materials
• Welding barcode compliant with ISO 13950; traceability barcode compliant with ISO 12176-4
• Fusamatic branded — trusted by utilities, designers and contractors worldwide

Note: All stated technical specifications depend on the PE pipe welded to and local pipeline pressure regulations. Please contact us for detailed CAD drawings.

Our electrofusion end caps are designed and manufactured to meet international product standards, backed by ISO 9001 and ISO 29001 quality management system certifications. The Fusamatic range is designed and manufactured to the standards below.

• EN ISO 15494 — Plastics piping systems — Polyethylene (PE) for industrial applications
• EN 12201-3 — Plastics piping systems for water supply — Polyethylene (PE) — Part 3: Fittings
• EN 1555-3 — Plastics piping systems for the supply of gaseous fuels — Polyethylene (PE) — Part 3: Fittings
• ISO 4437-3 — Plastics piping systems for the supply of gaseous fuels — Polyethylene (PE) — Part 3: Fittings
• ISO 4427-3 — Plastics piping systems for water supply — Polyethylene (PE) — Part 3: Fittings

Note: Regional variations may apply. Other product certificates available upon request.

We export PE electrofusion end caps worldwide. Fittings are individually polybagged, cartoned and palletized for safe sea freight.

We stand behind the quality of our electrofusion fittings. Our commitment doesn't end at delivery — we provide comprehensive technical support for your PE pipeline project.

Common questions about our PE100 electrofusion end cap.
