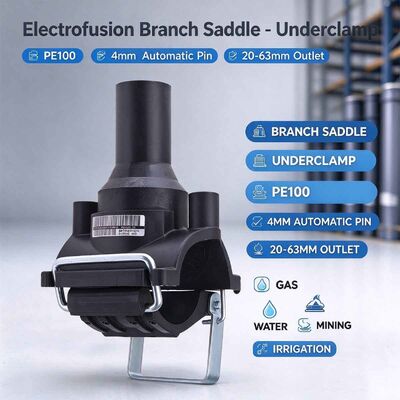

PE100 Compact Branch Saddle | Underclamp | 4mm Auto Pin | Small-Bore 20-63mm Outlet | Water PN16 / Gas 10 Bar | DN40-90 Main | Service Connection for Gas, Water, Mining & Irrigation Networks

The compact electrofusion branch saddle with underclamp provides small-bore service connections on smaller PE mains, with outlets from 20mm up to 63mm — ideal for taking off domestic services, irrigation laterals or small bypass lines.

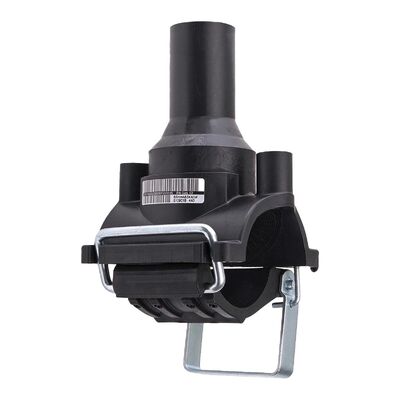

The sacrificial toggle-clamp underpart snaps quickly into place — saving installer time, avoiding the need for specialist tooling, and providing proof of clamping during the fusion cycle before being removed.

Manufactured from virgin PE100 black polyethylene with a 4mm automatic pin that reads the correct welding parameters automatically. Rated Water PN16 / Gas 10 Bar. Suitable for gas, water, mining and irrigation applications.

Fits main bodies from DN40 to DN90 (SDR 11 – 17.6) with 20/25/32/40/50/63mm outlets — 12 standard references. Operating temperature range: −10°C to +40°C.

• Domestic and commercial service connections off smaller distribution mains
• Irrigation lateral take-offs from trunk DN40–90 lines
• Small bypass and purging points on gas and water networks
• Mining process and water service off-takes
• Where a compact, quick-fixing saddle is preferred over a full tapping tee

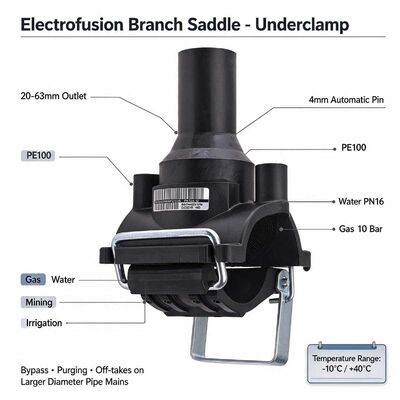

• Compact design — fits DN40–90 mains where larger saddles are over-specified
• Small-bore outlets 20/25/32/40/50/63mm — wide range of service take-off sizes
• Sacrificial toggle-clamp underpart — snaps quickly into place, no specialist tooling, proof of clamping during fusion
• Fully welded electrofusion joint — no gaskets, no clamps left in service, no future maintenance
• Fusamatic 4mm automatic pin — reads welding parameters automatically
• Water PN16 / Gas 10 Bar rating (dependent on PE pipe welded)
• Manufactured using virgin PE100 black polyethylene
• Rising pin fusion indicator for easy monitoring of the fusion process
• Manual welding parameters moulded into the body as backup
• Permanent batch number + barcode/QR code for full traceability (ISO 13950 / ISO 12176-4)

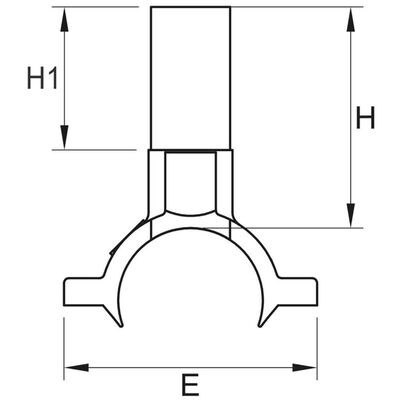

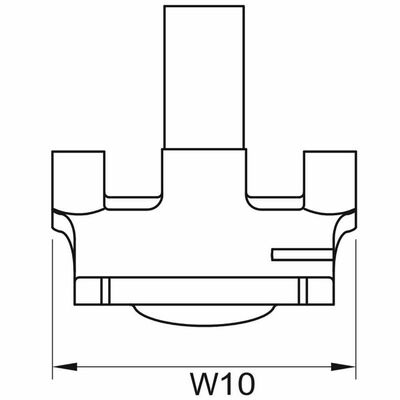

Note: All stated technical specifications depend on the PE pipe welded to and local pipeline pressure regulations. Please contact us for detailed CAD drawings.
