PE100 Heavy-Duty Branch Saddle | Underclamp | 4mm Auto Pin | Large-Bore 90-125mm Outlet | Water PN16 / Gas 10 Bar | DN90-250 Main | High-Flow Branching for Gas, Water, Mining & Irrigation Networks

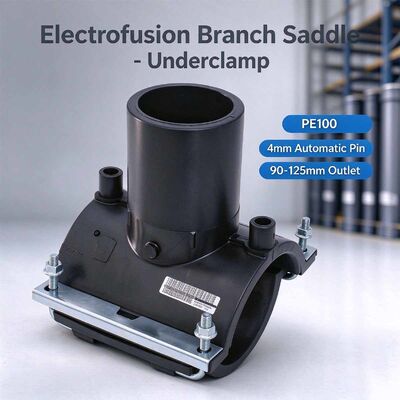

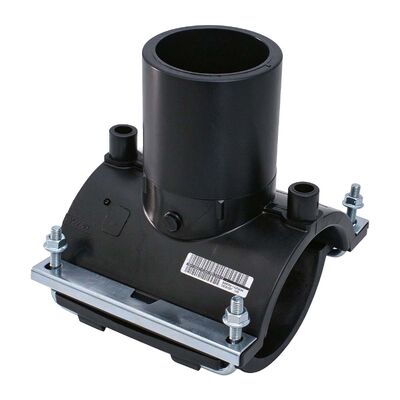

The heavy-duty electrofusion branch saddle with underclamp provides large-bore high-flow branches on larger PE mains, with outlets of 90mm, 110mm or 125mm — ideal for main-to-main connections, large bypasses, trunk-line off-takes and high-capacity service connections.

The bolted underclamp secures the saddle firmly to the main pipe during installation and provides visual proof of clamping throughout the fusion cycle, ensuring a consistent, high-integrity joint on larger-diameter mains.

Manufactured from virgin PE100 black polyethylene with a 4mm automatic pin that reads the correct welding parameters automatically. Rated Water PN16 / Gas 10 Bar. Suitable for gas, water, mining and irrigation applications requiring high-flow branching.

Fits main bodies from DN90 to DN250 (SDR 11 – 17.6) with 90/110/125mm outlets — 11 standard references. Operating temperature range: −10°C to +40°C.

• Main-to-main branch connections in gas distribution networks
• High-capacity water and wastewater trunk-line off-takes
• Large bypass connections for isolation and maintenance works
• Mining slurry and high-volume water service connections
• Irrigation trunk-line branching to secondary distribution mains

• Large-bore outlets 90/110/125mm — high-flow branching without bottlenecking the main
• Bolted underclamp — firm clamping on DN90–250 mains, with visual proof of clamping during fusion
• Heavy-duty body — designed for higher flow rates and larger branches
• Fully welded electrofusion joint — no gaskets, no clamps left in service, no future maintenance
• Fusamatic 4mm automatic pin — reads welding parameters automatically
• Water PN16 / Gas 10 Bar rating (dependent on PE pipe welded)
• Manufactured using virgin PE100 black polyethylene
• Rising pin fusion indicator for easy monitoring of the fusion process
• Manual welding parameters moulded into the body as backup
• Permanent batch number + barcode/QR code for full traceability (ISO 13950 / ISO 12176-4)

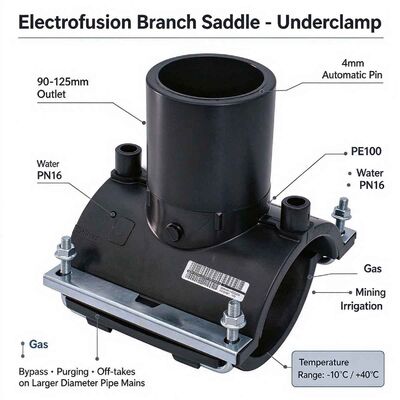

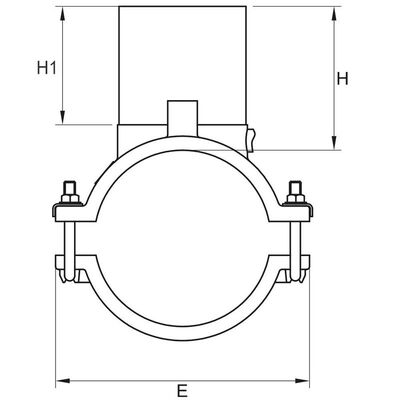

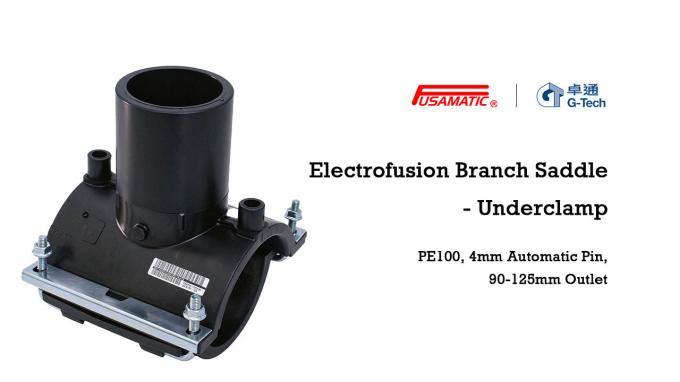

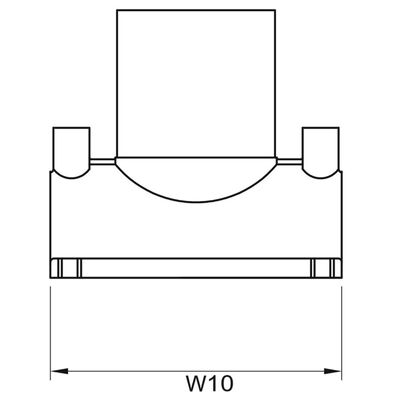

Note: All stated technical specifications depend on the PE pipe welded to and local pipeline pressure regulations. Please contact us for detailed CAD drawings.

Our heavy-duty branch saddles are third-party certified against international product standards for both gas and water applications, backed by ISO 9001 and ISO 29001 quality management system approvals.

• EN ISO 15494 — Plastics piping systems — Polyethylene (PE) for industrial applications
• EN 12201-3 — Plastics piping systems for water supply — Polyethylene (PE) — Part 3: Fittings
• EN 1555-3 — Plastics piping systems for gas supply — Polyethylene (PE) — Part 3: Fittings
• ISO 4427-3 — Plastics piping systems for water supply — Polyethylene (PE) — Part 3: Fittings
• ISO 4437-3 — Plastics piping systems for gas supply — Polyethylene (PE) — Part 3: Fittings

Note: Regional variations may apply. Other product certificates available upon request.

We export PE electrofusion fittings worldwide. Heavy-duty branch saddles are individually polybagged, cartoned and palletized for safe sea freight.

We stand behind the quality of our electrofusion fittings. Our commitment doesn't end at delivery — we provide comprehensive technical support for your PE pipeline project.
