PE100 Flanged Branch Saddle | Underclamp/Understrap | Manual Pin | DN100 Flange Outlet | SDR 11-26 | Water PN16 / Gas 10 Bar | DN225-630 Main | Flanged Branching for Gas, Water, Mining & Irrigation

The flanged electrofusion branch saddle with underclamp/understrap provides a DN100 flanged outlet on DN225–630 PE mains, allowing direct bolted connection to flanged valves, meters, pumps, filters and other equipment — without additional transition adapters.

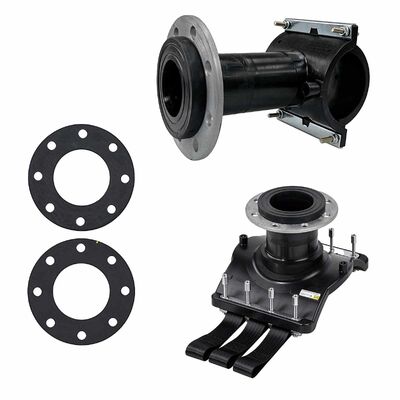

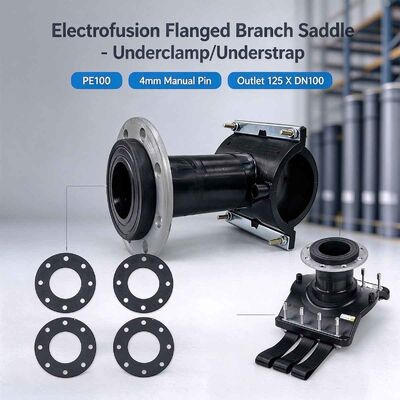

The DP version is supplied as a complete assembly: flanged branch saddle + galvanised backing ring + NBR and EPDM full face gaskets (Class B per GIS PL2 Part 4). The sacrificial underclamp/understrap locks the fitting in place during the weld cycle and can be retained in-situ after installation.

Manufactured from virgin PE100 black polyethylene with a 4mm manual pin. Rated Water PN16 / Gas 10 Bar. Suitable for gas, water, mining and irrigation applications. Operating temperature range: −10°C to +40°C.

Covers SDR 11–26 (225/250mm bodies: SDR 11–21) for main bodies from DN225 to DN630 — 6 standard references.

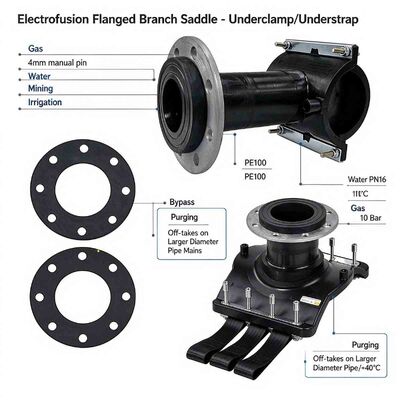

• Connection of flanged valves, control valves and regulator sets on PE gas/water mains
• Meter connections and metering chamber branches on distribution networks
• Pump, filter and equipment take-offs from large PE trunk lines
• Bypass and isolation connections requiring bolted disconnection capability
• Mining and industrial process water flanged equipment connections

• DN100 flanged outlet — direct bolted connection to flanged valves, meters and equipment
• Complete DP assembly — includes galvanised backing ring + NBR and EPDM full face gaskets (Class B, GIS PL2 Part 4)
• Underclamp/understrap fixing — locks fitting during weld cycle, can be retained in-situ after installation
• Large electrofusion area — enhanced weld integrity on large mains
• Manual pin 4.0mm — parameters moulded into the body
• Water PN16 / Gas 10 Bar rating (dependent on PE pipe welded)
• Manufactured using virgin PE100 black polyethylene
• Permanent batch number + barcode/QR code for full traceability (ISO 13950 / ISO 12176-4)

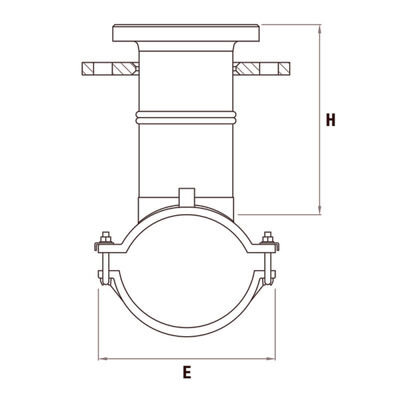

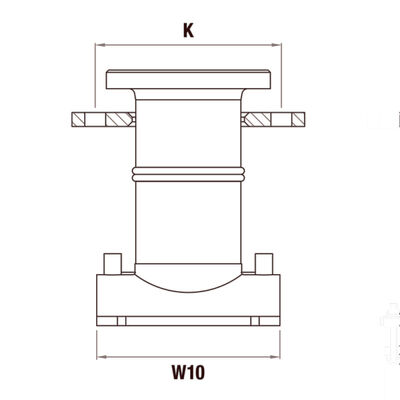

Note: DP = Flange branch saddle assembly and galvanised backing ring. Includes NBR and EPDM full face gaskets. Class B — GIS PL2 Part 4. All stated specifications depend on the PE pipe welded and local regulations. Please contact us for detailed CAD drawings.

Our flanged branch saddles are third-party certified against international product standards for both gas and water applications, backed by ISO 9001 and ISO 29001 quality management system approvals.

• EN ISO 15494 — Plastics piping systems — Polyethylene (PE) for industrial applications
• EN 12201-3 — Plastics piping systems for water supply — Polyethylene (PE) — Part 3: Fittings
• EN 1555-3 — Plastics piping systems for gas supply — Polyethylene (PE) — Part 3: Fittings
• ISO 4437-3 — Plastics piping systems for gas supply — Polyethylene (PE) — Part 3: Fittings
• ISO 4427-3 — Plastics piping systems for water supply — Polyethylene (PE) — Part 3: Fittings

Note: Regional variations may apply. Other product certificates available upon request.

We export PE electrofusion fittings worldwide. Flanged branch saddles with backing rings and gaskets are carefully packed for safe sea freight.

We stand behind the quality of our electrofusion fittings. Our commitment doesn't end at delivery — we provide comprehensive technical support for your PE pipeline project.

Common questions about our flanged branch saddle with underclamp/understrap.
