PE100 Duckfoot Bend | Fusamatic Auto Pin | 90mm SDR11-17.6 | Water PN16 | Fully Welded Hydrant & Riser Connector with Integral Base Eliminates Mechanical Joints for Water, Mining & Irrigation

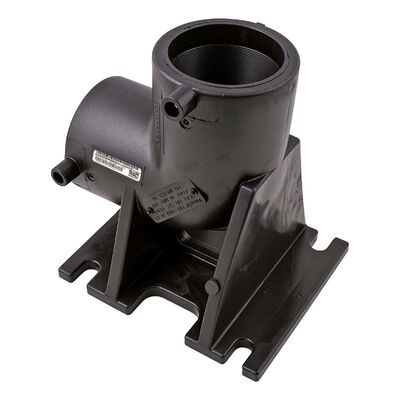

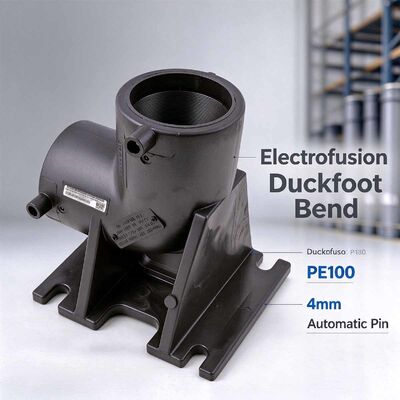

The PE100 electrofusion duckfoot bend provides a fully fused, leak-free transition from a horizontal buried PE water pipe to a vertical riser or fire hydrant installation. Unlike traditional flange or mechanical joints, the duckfoot bend is electrofusion welded on both ends — eliminating the leak points and maintenance associated with mechanical connections.
The integral mounting base with slotted bolt holes anchors the fitting securely in the ground or within a valve chamber, providing stable support for the vertical riser. Designed for use with standard HDPE hydrant and riser kits, the 90*90mm duckfoot bend with Fusamatic automatic pin reads the fitting and feeds the correct welding parameters to the fusion unit automatically.
Manufactured from virgin PE100 black polyethylene, rated Water PN16, SDR 11–17.6. Suitable for water supply, mining and irrigation applications (not designed for gas service). Operating temperature range: −10°C to +40°C.

• Fire hydrant connections from buried PE water mains
• Meter risers and above-ground valve installations
• Transition from horizontal buried pipe to vertical above-ground service
• Mining and process water vertical take-offs
• Irrigation riser connections and field hydrants

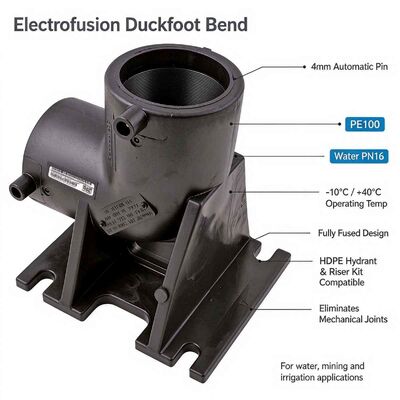

• Fully welded design — both ends electrofusion welded, eliminating mechanical joint leaks
• Integral mounting base — slotted bolt holes for secure anchoring in ground or chamber
• Fusamatic automatic pin (4.0mm) — automatically provides correct welding parameters
• Rising pin fusion indicators — visual confirmation of completed weld cycle
• Compatible with HDPE hydrant and riser kits — direct fused connection
• Water PN16 rated (SDR 11–17.6)
• Manufactured using virgin PE100 black polyethylene
• Permanent batch number plus barcode/QR traceability (ISO 13950 / ISO 12176-4)

Note: Water PN16 rating depends on the PE pipe welded and local regulations. This fitting is designed for water, mining and irrigation applications only — not for gas service. Please contact us for detailed CAD drawings and installation guidance.

Our duckfoot bends are third-party certified against international water supply product standards, backed by ISO 9001 and ISO 29001 quality management system approvals.

• EN ISO 15494 — Plastics piping systems — Polyethylene (PE) for industrial applications
• EN 12201-3 — Plastics piping systems for water supply — Polyethylene (PE) — Part 3: Fittings
• ISO 4427-3 — Plastics piping systems for water supply — Polyethylene (PE) — Part 3: Fittings

Note: This fitting is certified for water applications. Other product certificates available upon request.

We export PE electrofusion fittings worldwide. Duckfoot bends are carefully packed to protect the integral mounting base and fusion ends.

We stand behind the quality of our electrofusion fittings. Our commitment doesn't end at delivery — we provide comprehensive technical support for your PE water pipeline project.

Common questions about our PE100 electrofusion duckfoot bend.
