45° Electrofusion Elbow PE100 DN32-250 | 4.0mm Fusamatic Auto Pin | Water PN16 / Gas 10 Bar | Gentle-Angle Welded Bends Minimizing Flow Resistance in Water, Gas & Irrigation Lines

4.0mm Fusamatic Auto Pin | Water PN16 / Gas 10 Bar | Gentle-Angle Welded Bends Minimizing Flow Resistance in Water, Gas & Irrigation Lines

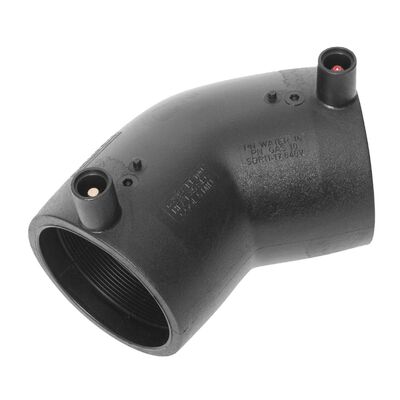

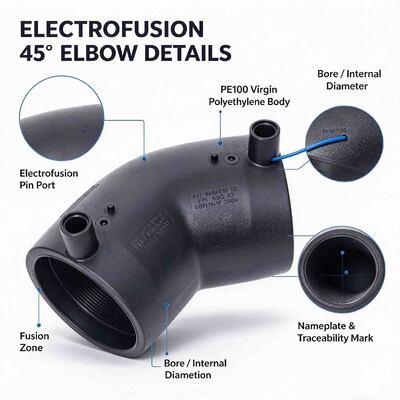

A PE100 electrofusion 45° elbow changes the direction of a polyethylene pipeline by 45 degrees with a gentle, sweeping radius. Compared to sharper bends, the 45° angle produces significantly lower flow resistance, helping maintain pressure and throughput in long-distance gas, water and irrigation networks.

This range uses a 4.0mm Fusamatic automatic pin, which automatically reads the correct welding parameters from the fitting body. This eliminates manual data-entry errors and ensures consistent, repeatable fusion quality across the entire pipeline project.

Manufactured from virgin PE100 black polyethylene, rated PN16 for water and 10 bar for gas. Operating temperature range: -10°C to +40°C. Available in 13 sizes from DN32 to DN250mm.

• Long-distance water mains requiring low pressure loss
• Gas distribution networks with gentle routing changes
• Wastewater and sewer gravity mains
• Large agricultural irrigation schemes
• Mining slurry and dewatering pipelines
• Industrial process water systems

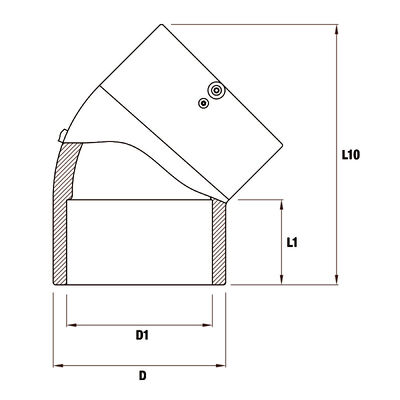

All stated technical specifications depend on the PE pipe welded to and local pipeline pressure regulations. SDR 11 applies to DN32-50; SDR 11-17.6 applies to DN63-225; SDR 11-21 applies to DN250. Please contact us for detailed CAD drawings.

Our electrofusion elbows are designed and manufactured to meet international product standards, backed by ISO 9001 and ISO 29001 quality management system certifications.

• EN ISO 15494 — Plastics piping systems — Polyethylene (PE) for industrial applications
• EN 12201-3 — Plastics piping systems for water supply — Polyethylene (PE) — Part 3: Fittings
• EN 1555-3 — Plastics piping systems for the supply of gaseous fuels — Polyethylene (PE) — Part 3: Fittings
• ISO 4437-3 — Plastics piping systems for the supply of gaseous fuels — Polyethylene (PE) — Part 3: Fittings
• ISO 4427-3 — Plastics piping systems for water supply — Polyethylene (PE) — Part 3: Fittings
• Welding barcode compliant with ISO 13950
• Traceability barcode compliant with ISO 12176-4

Regional variations may apply. Other product certificates available upon request.

We stand behind the quality of our electrofusion fittings. Our commitment doesn't end at delivery — we provide comprehensive technical support for your PE pipeline project.
