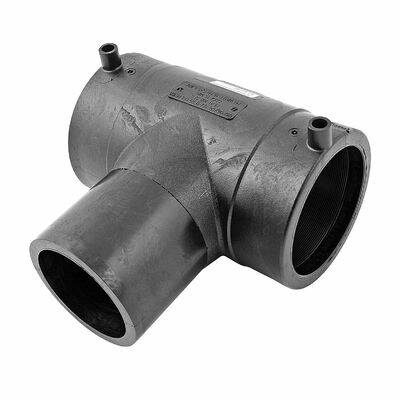

Electrofusion Equal Tee PE100 DN20-250mm

4.0mm Fusamatic Auto Pin | Water PN16 / Gas 10 Bar | Three-Way Full-Bore Branch Joints for Reliable Flow Distribution in Gas & Water Networks

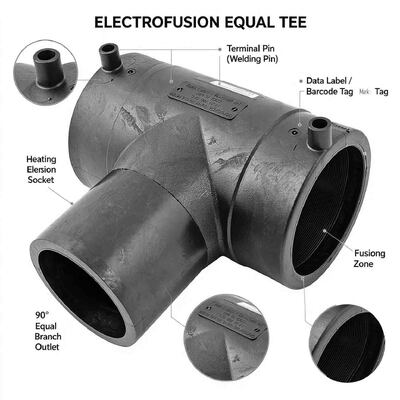

Product Overview

A PE100 electrofusion equal tee is a three-way fitting where all three outlets share the same diameter, creating a full-bore branch point in a polyethylene pipeline. Because there is no reduction at the branch, the main line and the branch line both carry the full pipeline flow—making equal tees the standard choice for distribution networks and service connections.

This range uses a 4.0mm Fusamatic automatic pin, which automatically reads the correct welding parameters from the fitting body. This eliminates manual data-entry errors and ensures consistent, repeatable fusion quality across the entire pipeline project.

Manufactured from virgin PE100 black polyethylene, rated PN16 for water and 10 bar for gas. Operating temperature range: -10°C to +40°C. Available in 15 sizes from DN20 to DN250mm.

Typical Applications

Branch connections on water distribution mains
Gas network service branches and distribution tees
Wastewater and sewer network branching
Irrigation header manifold splits
Mining process and slurry pipelines
Industrial utility ring mains and fire-fighting networks

Key Features & Benefits

Manufactured using virgin PE100 black polyethylene for long-term durability
Water PN16 / Gas 10 Bar rating (dependent on PE pipe welded)
Equal three-way design—same bore on main and branch, no flow restriction
Full-bore branch joint keeps head loss to a minimum at the tee
4.0mm Fusamatic automatic pin—auto-detects welding parameters, prevents operator error
SDR range 11-21, covering common PE pipe wall thicknesses
Rising pin fusion indicators allow easy visual monitoring of the fusion process
Welding parameters moulded directly into the fitting body
Individually numbered for precise batch tracking and quality control
Permanent batch number clearly marked for traceability
Barcode and QR code enables full traceability back to raw materials
Welding barcode compliant with ISO 13950; traceability barcode compliant with ISO 12176-4
Fully welded joint—no gaskets, no flanges, no future maintenance

Reference Numbers & Dimensions

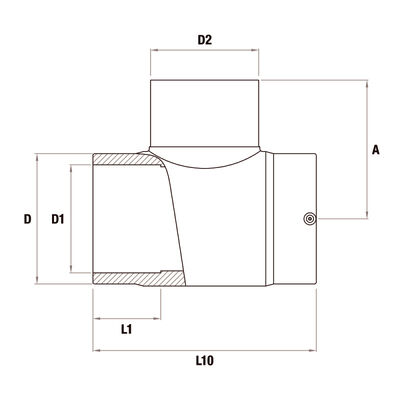

Ref. No.	Size (mm)	L10 (mm)	L1 (mm)	D (mm)	D1 (mm)	D2 (mm)	A (mm)	SDR	Fusion (s)	Cooling (min)	Weight (kg)
ETBKHFA20	20	98	35	30	20	20	86	11	25	5	0.055
ETBKHFA25	25	98	35	35	25	25	88.5	11	25	5	0.066
ETBKHFA32	32	98	30	44	32	32	93	11	50	5	0.097
ETBKHFA40	40	131	44	52	40	40	91	11	50	5	0.165
ETBKHFA50	50	141	43	63	50	50	104	11	90	5	0.225
ETBKHFA63	63	156	50	82	63	63	118	11	40	5	0.437
ETBKHFA75	75	174	55	97	75	75	134	11-17.6	50	10	0.630
ETBKHFA90	90	207	64	115	90	90	150	11-17.6	110	10	0.965
ETBKHFA110	110	239	73	139	110	110	168	11-17.6	140	10	1.650
ETBKHFA125	125	264	80	156	125	125	182	11-17.6	200	15	2.310
ETBKHFA160	160	313	89	200	160	160	213.5	11-17.6	360	20	4.000
ETBKHFA180	180	334	90	222	180	180	232	11-17.6	360	20	5.350
ETBKHFA200	200	358	90	242	200	200	260	11-17.6	440	20	6.770
ETBKHFA225	225	406	105	271	225	225	285	11-17.6	600	30	9.380
ETBKHFA250	250	448	109	303	250	250	314	11-21	900	30	13.350

Note: All stated technical specifications depend on the PE pipe welded to and local pipeline pressure regulations. SDR 11 applies to DN20-63; SDR 11-17.6 applies to DN75-225; SDR 11-21 applies to DN250. Please contact us for detailed CAD drawings.

Product Standards & Certifications

Our electrofusion tees are designed and manufactured to meet international product standards, backed by ISO 9001 and ISO 29001 quality management system certifications.

EN ISO 15494—Plastics piping systems—Polyethylene (PE) for industrial applications
EN 12201-3—Plastics piping systems for water supply—Polyethylene (PE)—Part 3: Fittings
EN 1555-3—Plastics piping systems for the supply of gaseous fuels—Polyethylene (PE)—Part 3: Fittings
ISO 4437-3—Plastics piping systems for the supply of gaseous fuels—Polyethylene (PE)—Part 3: Fittings
ISO 4427-3—Plastics piping systems for water supply—Polyethylene (PE)—Part 3: Fittings
Welding barcode compliant with ISO 13950
Traceability barcode compliant with ISO 12176-4

Note: Regional variations may apply. Other product certificates available upon request.

Shipping & Delivery Information

We export PE electrofusion tees worldwide. Small sizes are packed in cartons on pallets; larger sizes are individually polybagged and crated for safe sea freight.

Frequently Asked Questions

Common questions about our PE100 electrofusion equal tees

What is an electrofusion equal tee used for?

An electrofusion equal tee creates a three-way branch in a PE pipeline with all three outlets of the same diameter, enabling flow distribution to branch lines for gas, water, wastewater, irrigation and mining networks.

What sizes are available?

The equal tee range covers 15 sizes from DN20 to DN250mm, including 63, 90, 110, 160, 200 and 250mm. All sizes use a 4.0mm Fusamatic automatic pin.

What pressure rating does this PE100 tee support?

This tee is rated PN16 for water applications and 10 bar for gas applications, when welded to PE pipe of the corresponding SDR rating. Always verify the pipe SDR and local pressure regulations before installation.

What is a full-bore tee?

In an equal tee all three outlets have the same bore diameter as the main pipe, so there is no flow restriction at the branch point—the branch line receives the full pipeline capacity.

What is the minimum order quantity?

The standard MOQ is 100 pieces per size, but we are flexible for trial orders. Smaller sample quantities are available for evaluation. Contact us with your required sizes and quantity for a tailored quote.
