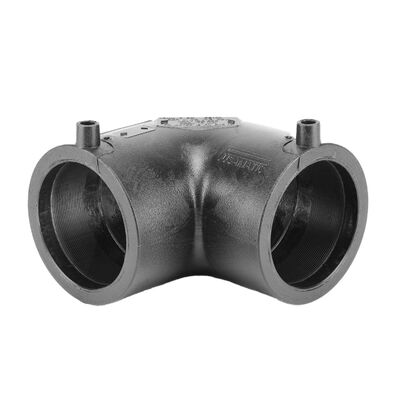

PE100 Electrofusion 90° Elbow DN20-250mm | 4.0mm Fusamatic Auto Pin | PN16 Water / 10 Bar Gas | Leak-Free Welded Directional Bends for Gas, Water, Mining & Irrigation Pipelines

A PE100 electrofusion 90° elbow changes the direction of a polyethylene pipeline by 90 degrees, creating a fully welded, leak-free bend without mechanical joints, flanges or gaskets. It is the standard fitting for pipeline direction changes in buried and above-ground gas, water, wastewater and industrial networks.

This range uses a 4.0mm Fusamatic automatic pin, which automatically reads the correct welding parameters from the fitting body. This eliminates manual data-entry errors and ensures consistent, repeatable fusion quality across the entire pipeline project.

Manufactured from virgin PE100 black polyethylene, rated PN16 for water and 10 bar for gas. Operating temperature range: -10°C to +40°C. Available in 15 sizes from DN20 to DN250mm.

• 90° direction changes in municipal water distribution networks
• Gas pipeline bends and network routing
• Wastewater and sewer rising main bends
• Agricultural irrigation main line direction changes
• Mining slurry and dewatering pipeline bends
• Industrial process water and compressed air systems

• Manufactured using virgin PE100 black polyethylene for long-term durability
• Water PN16 / Gas 10 Bar rating (dependent on PE pipe welded)

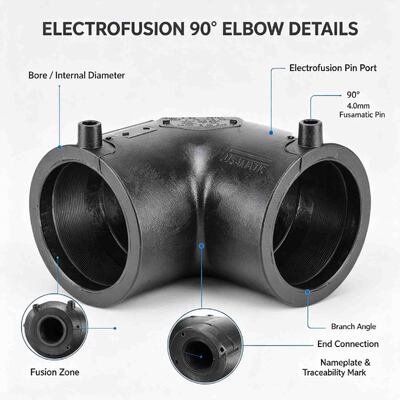

• 4.0mm Fusamatic automatic pin – auto-detects welding parameters, prevents operator error
• SDR range 11-21, covering common PE pipe wall thicknesses
• Rising pin fusion indicators allow easy visual monitoring of the fusion process
• Welding parameters moulded directly into the fitting body
• Individually numbered for precise batch tracking and quality control
• Permanent batch number clearly marked for traceability
• Barcode and QR code enables full traceability back to raw materials
• Welding barcode compliant with ISO 13950; traceability barcode compliant with ISO 12176-4
• Fully welded joint – no gaskets, no flanges, no future maintenance

Our electrofusion elbows are designed and manufactured to meet international product standards, backed by ISO 9001 and ISO 29001 quality management system certifications.

• EN ISO 15494 – Plastics piping systems – Polyethylene (PE) for industrial applications
• EN 12201-3 – Plastics piping systems for water supply – Polyethylene (PE) – Part 3: Fittings
• EN 1555-3 – Plastics piping systems for the supply of gaseous fuels – Polyethylene (PE) – Part 3: Fittings
• ISO 4437-3 – Plastics piping systems for the supply of gaseous fuels – Polyethylene (PE) – Part 3: Fittings
• ISO 4427-3 – Plastics piping systems for water supply – Polyethylene (PE) – Part 3: Fittings
• Welding barcode compliant with ISO 13950
• Traceability barcode compliant with ISO 12176-4

We export PE electrofusion elbows worldwide. Small sizes are packed in cartons on pallets; larger sizes are individually polybagged and crated for safe sea freight.
