PE100 Branch Saddle | Underclamp | 4mm Auto Pin | Toggle-Clamp Fixing | Water PN16 / Gas 10 Bar | DN63-225 Main x 40-63mm | Bypass, Purging & Off-Take for Gas, Water, Mining & Irrigation Networks

The electrofusion branch saddle with underclamp provides a solution for bypass, purging and off-take connections on larger diameter pipe mains, with a 40mm, 50mm or 63mm branch outlet.

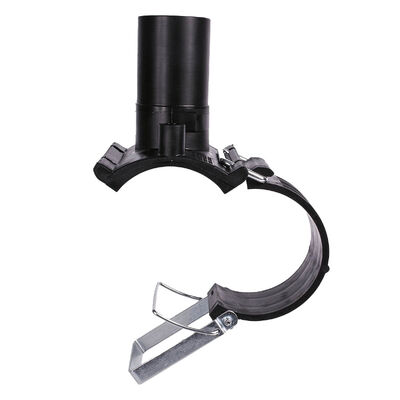

The sacrificial toggle-clamp underpart snaps quickly into place — saving installer time, avoiding the need for specialist tooling, and providing proof of clamping during the fusion cycle before being removed.

Manufactured from virgin PE100 black polyethylene with a 4mm automatic pin that reads the correct welding parameters automatically. Rated Water PN16 / Gas 10 Bar. Suitable for gas, water, mining and irrigation applications.

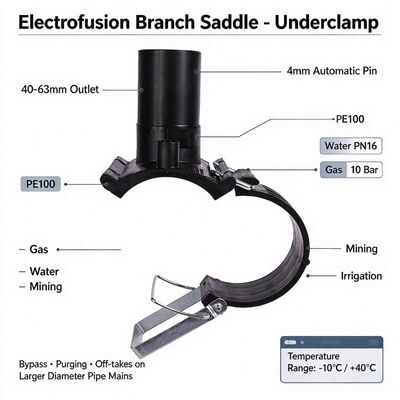

Fits main bodies from DN63 to DN225 (SDR 11 – 17.6) with 40/50/63mm outlets — 27 standard references. Operating temperature range: -10°C to +40°C.

• Bypass lines around valves, meters and maintenance sections on large mains
• Purging points for pipeline commissioning and pressure testing
• Off-take connections on gas, water and mining networks
• Irrigation scheme take-offs from trunk mains
• New service branches on large diameter PE pipe mains

• Sacrificial toggle-clamp underpart — snaps quickly into place, no specialist tooling, provides proof of clamping during the fusion cycle
• Fully welded electrofusion joint — no gaskets, no clamps left in service, no future maintenance
• Solution for bypass, purging and off-take on larger diameter pipe mains
• Available with 40mm, 50mm or 63mm outlets on DN63–225 mains
• Fusamatic 4mm automatic pin — reads welding parameters automatically
• Water PN16 / Gas 10 Bar rating (dependent on PE pipe welded)
• Manufactured using virgin PE100 black polyethylene
• Rising pin fusion indicator for easy monitoring of the fusion process
• Manual welding parameters moulded into the body as backup
• Permanent batch number + barcode/QR code for full traceability (ISO 13950 / ISO 12176-4)

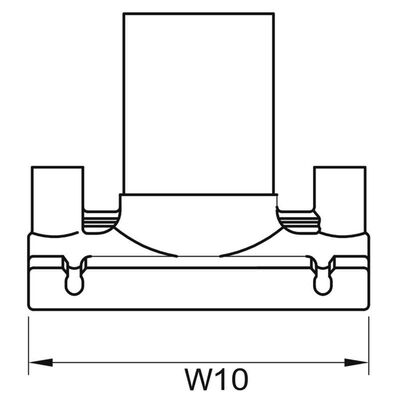

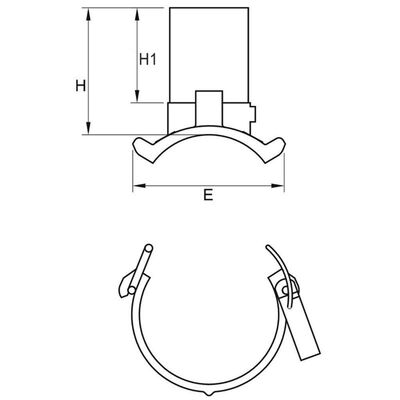

Note: All stated technical specifications depend on the PE pipe welded to and local pipeline pressure regulations. Please contact us for detailed CAD drawings.

Our branch saddles are third-party certified against international product standards for both gas and water applications, backed by ISO 9001 and ISO 29001 quality management system approvals.

• EN ISO 15494 — Plastics piping systems — Polyethylene (PE) for industrial applications
• EN 12201-3 — Plastics piping systems for water supply — Polyethylene (PE) — Part 3: Fittings
• EN 1555-3 — Plastics piping systems for gas supply — Polyethylene (PE) — Part 3: Fittings
• ISO 4427-3 — Plastics piping systems for water supply — Polyethylene (PE) — Part 3: Fittings
• ISO 4437-3 — Plastics piping systems for gas supply — Polyethylene (PE) — Part 3: Fittings

Note: Regional variations may apply. Other product certificates available upon request.

We export PE electrofusion fittings worldwide. Branch saddles are individually polybagged, cartoned and palletized for safe sea freight.

We stand behind the quality of our electrofusion fittings. Our commitment doesn't end at delivery — we provide comprehensive technical support for your PE pipeline project.
